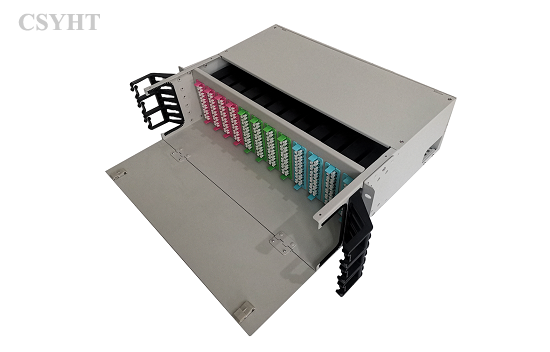

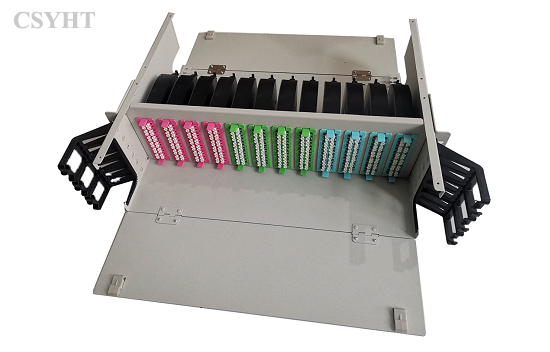

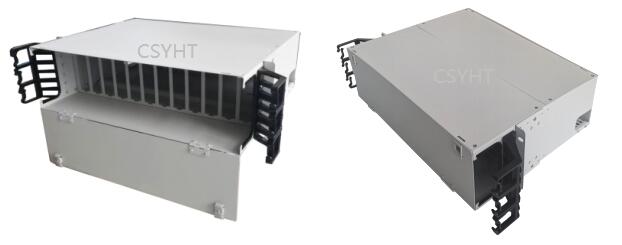

288fo high density MPO 19inch 3U patch panel HODF-RF3U
Product specifications
Model: HODF-RF3U
Dimension(mm): 482x353x131.5
Material: Cold roll steel
Max. capacity: 288 fibers
With 12pcs MPO cassettes HD-07
MPO cassette HD-07 can load 2pcs MPT/MTP adapters & 12pcs LC duplex or 12pcs SC simplex adapters
Color: Grey white or black
Fixed type, 19inch rack mounted application
Product details
HODF-RF3U is a high density fiber optic patch panel that made by high quality cold roll steel material, the surface is with electrostatic powder spraying.
It is fixed type 3U height for 19inch rack mounted application. It can 12pcs MPO cassettes HD-07 for max. 288 fiber connection and distribution. There are the cable management ring on both sides of patch panel. It has front and rear metal doors.
