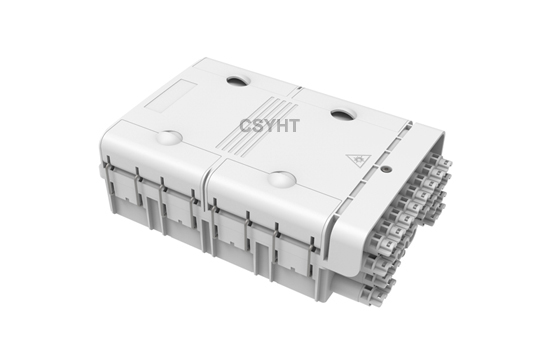

24FO FTTH box BP023A

Product specifications

Model: BP023A
(Internal model: OTB-P023-A)
Dimension(mm): 232X359X130.5
Material: ABS plastic
Max. capacity: 48fibers
Adapter port: 24pcs SC simplex
Can load 1pc PLC 1:16 and 2pcs PLC 1:8 steel tube type splitter
Color: black or white
Application: outdoor wall mounted or pole mounted

Product details

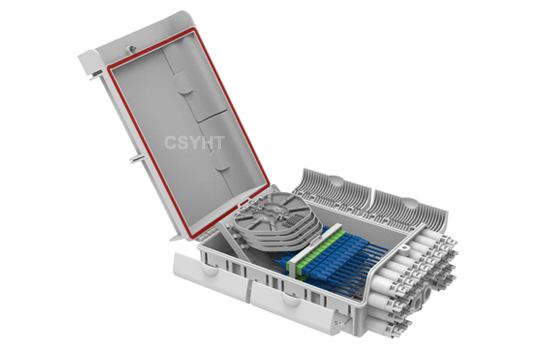

Fiber optic terminal box is available for the distribution and terminal connection of various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cords or pigtails are connected.
