12 cores outdoor wall mounted fiber optic box OTB-F12M

Product specifications

Model: OTB-F12M
Dimension(mm): 220x250x70.5
Material: cold roll steel
Adapter port: 12pcs SC simplex
Max. capacity: 12 fibers
Max. qty of splice tray: 1pc
Max. capacity of splice tray:  12 fibers
Color: RAL7035
Application: outdoor wall mounted

Product details

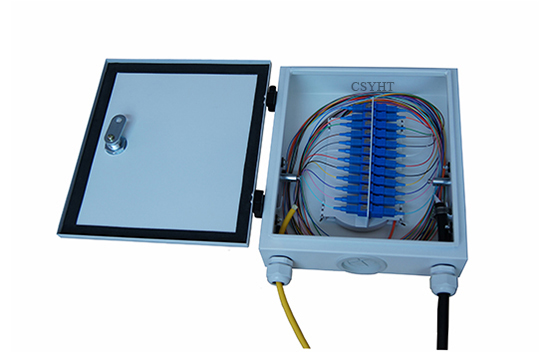

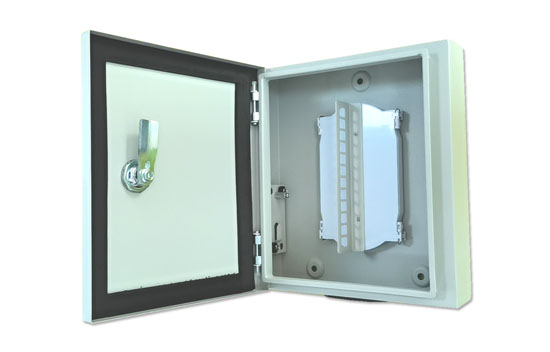

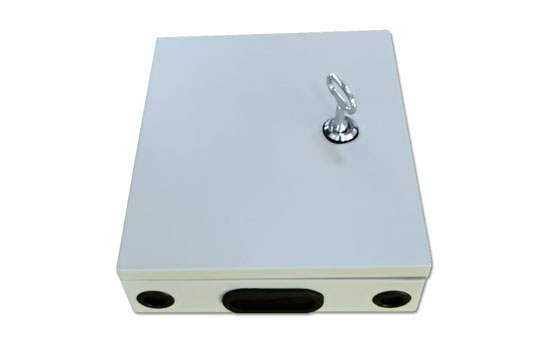

OTB-F12M is a fiber optic terminal box, which is used for the protective connection of cable and pigtail of branch cable. It can be used for both indoor and outdoor wall mounted application.

Features:
Reasonable structure design, easy for installation
Material:Cold-roll steel
Cable ports: 2 rounds ports for PG16 cable gland, 1 oval port 30*70mm gasket
Adapter ports: 12pcs SC simplex adapter ports
Different types of adapters could be installed, such as SC, ST, FC, LC etc.
Outdoor wall mounted application
