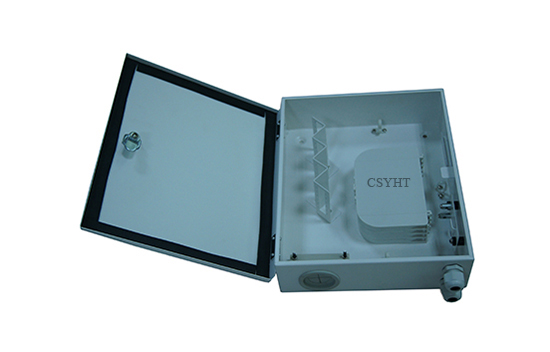

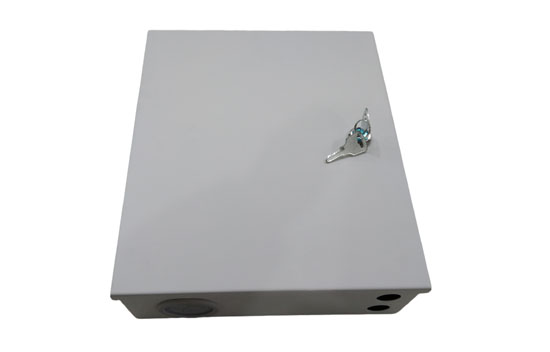

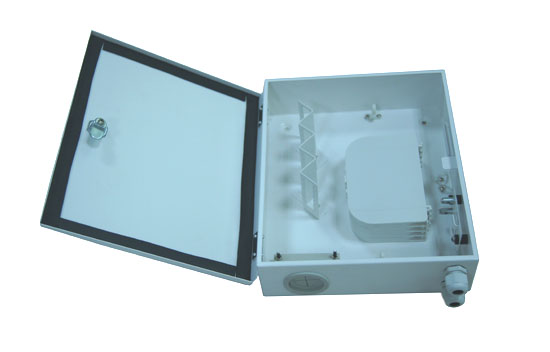

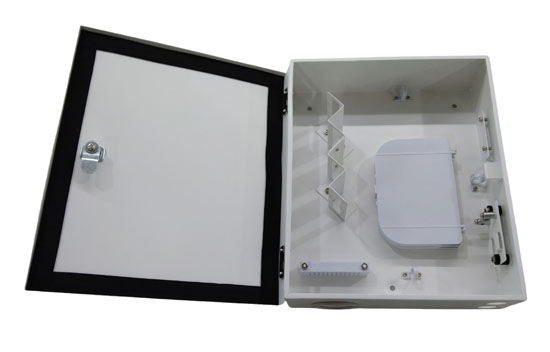

Metal terminal box BSP16
Product specifications
Model: BSP16
(Internal model: OTB-SP16)
Dimension(mm): 305x254x80
Material: cold roll steel
Adapter port: 24pcs SC simplex
Max. capacity: 24 fibers
Max. qty of splice tray: 4pcs
Max. capacity of splice tray: 6 fibers
Color: RAL7035
Can load 1pc PLC 1:8 or 1:16 steel tube type splitter
Application: outdoor wall mounted
Product details
Fiber optic terminal box is available for the distribution and terminal connection of various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cords or pigtails are connected.
